Wide-angle waterproof type
40B18TR-3SL
Category:Wide-angle waterproof type
Frequency:40KHz
Diameter:18mm
Range:4m
Beam angle:20°,60°,120°
Output signal:Passive transducer
Applications:Distance measure,Obstacle Avoidance,Shock Wave Targeting,Smart sensing,Dual-angle obstacle avoidance
Inquire Now
Frequency:40KHz
Diameter:18mm
Range:4m
Beam angle:20°,60°,120°
Output signal:Passive transducer
Applications:Distance measure,Obstacle Avoidance,Shock Wave Targeting,Smart sensing,Dual-angle obstacle avoidance

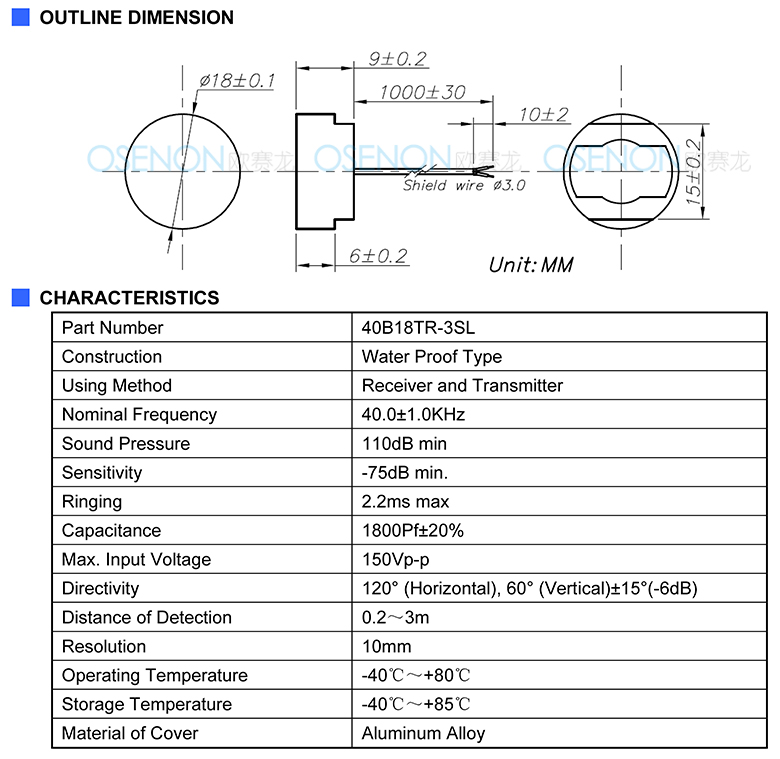

- Product Information
- Precautions
- Company Statement
-
1, Please do not apply D.C.voltage for ultrasonic sensors to avoid migration.
2, Because the sensors have potential direction, please pay attention to its installation location.
3, To ensure reliability and long service life, do not use the sensors where temperature is higher than the rated.
4, Can not use the sensors in a vacuum zone or hazardous areas.
5, Do not use in a steam zone, the area of the atmosphere produce uneven temperature gradient will lead to measurement error.
6, The products should not be used or stored in a corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are present. Store the products in the room where is normal temperature and humidity, and avoid the sunlight, sudden changes in temperature and humidity. It may cause of failure or malfunction in such conditions.
7, If you will apply to non-standard frequency and other special conditions, please inform us the specific work conditions and the circuit you need, in order to make sensors to meet your specific requirements.
-
1, Please do not apply D.C.voltage for ultrasonic sensors to avoid migration.
2, Because the sensors have potential direction, please pay attention to its installation location.
3, To ensure reliability and long service life, do not use the sensors where temperature is higher than the rated.
4, Can not use the sensors in a vacuum zone or hazardous areas.
5, Do not use in a steam zone, the area of the atmosphere produce uneven temperature gradient will lead to measurement error.
6, The products should not be used or stored in a corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are present. Store the products in the room where is normal temperature and humidity, and avoid the sunlight, sudden changes in temperature and humidity. It may cause of failure or malfunction in such conditions.
7, If you will apply to non-standard frequency and other special conditions, please inform us the specific work conditions and the circuit you need, in order to make sensors to meet your specific requirements.
